Fast, reliable, and versatile
Pore structure analysis with PORE!SCAN
To drive the continuous development of porous materials and ensure high quality, it is essential to objectively measure and assess the surface and structure-specific characteristics of the materials. Our PORE!SCAN systems make this possible and support the development of advanced solutions.
Quality assurance is key
What do a car tire, a part of building insulation, and the front module of a rail vehicle made of aluminum foam have in common? They are all made of porous materials, and for all of them, quality is crucial. Even the smallest defects in the pore structure affect functionality and lead to a loss of quality, potentially endangering consumers. A comprehensive analysis of morphology can not only prevent this but also contribute to the long-term optimization of material properties.
PORE!SCAN applications at a glance
Reliable evaluation of porous materials
How PORE!SCAN works
For manufacturers who demand the highest standards for their products, we developed PORE!SCAN – a measurement system that enables fast and easy optical analysis of the pore structure of various cellular materials, from rigid and filter foams to porous building materials, mineral insulation, and metal foam.
Step 1: Sample preparation
To generate reliable results, a high-quality sample with a clear pore structure is essential. There should be strong contrast between the pore and the matrix, and the pores should not be translucent. You can ensure this by preparing the sample using a special cutting method and treating it with the PORE!SCAN contrast agent.
Step 2: Analysis
The PORE!SCAN system conducts an optical examination of the prepared sample using a special illumination method that highlights height differences on the sample surface. This makes the number and shape of the pores visible.
After setting the desired parameters (e.g., positioning, exposure time, zoom, etc.), the image is captured, and the recorded sample image is displayed.
Step 3: Ressults and evaluation

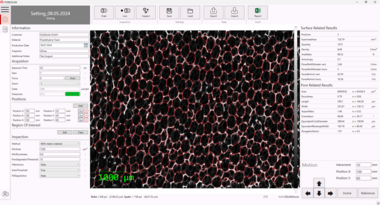

The specially developed software for the system allows you to read the results, including a clear graphical representation of the analyzed sample. You can adjust the image or take a new one with modified parameters.
Once the image is saved, Excel automatically starts, and all data is written into the pre-selected template files. We provide a basic structure, and the rest can be customized individually.

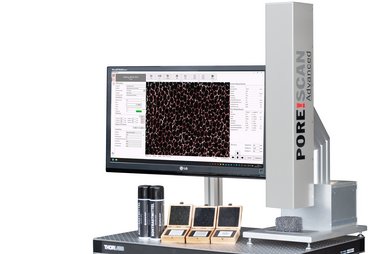

PORE!SCAN: structure & components
Our PORE!SCAN systems consist of a hardware and a software component, which are ideally matched to each other.
PORE!SCAN advantages at a glance
- The analysis of the pore structure of cellular materials is significantly simplified and optimized through digital image processing.
- Objective evaluation of reproducible parameters is enabled and no longer subject to subjective interpretation.
- The collected data can be used to optimize materials and enhance innovation capabilities.
- Optimizing materials helps prevent defective production and conserves resources.
- In-depth knowledge of material structures enables faster development of new materials, providing a competitive edge.
Do you have questions about our PORE!SCAN systems?
Would you like to learn more about PORE!SCAN and how you can use our systems for reliable testing of your porous materials? We would be happy to provide personal consultation and discuss your individual needs. Contact us now – we look forward to hearing from you.
